Waterproof AC Power Connectors

Perfect for harsh outdoor environments, these locking AC power connectors are completely waterproof when in the connected state.

Easily connect or disconnect with a simple twist. The reliable torsion locking system ensures a strong, waterproof connection without effort, every time.

Sold as a full set, including:

• 1 - male cable-end plug,
• 1 - female chassis-mount socket,
• 1 - chassis-mount gasket/dust cover,

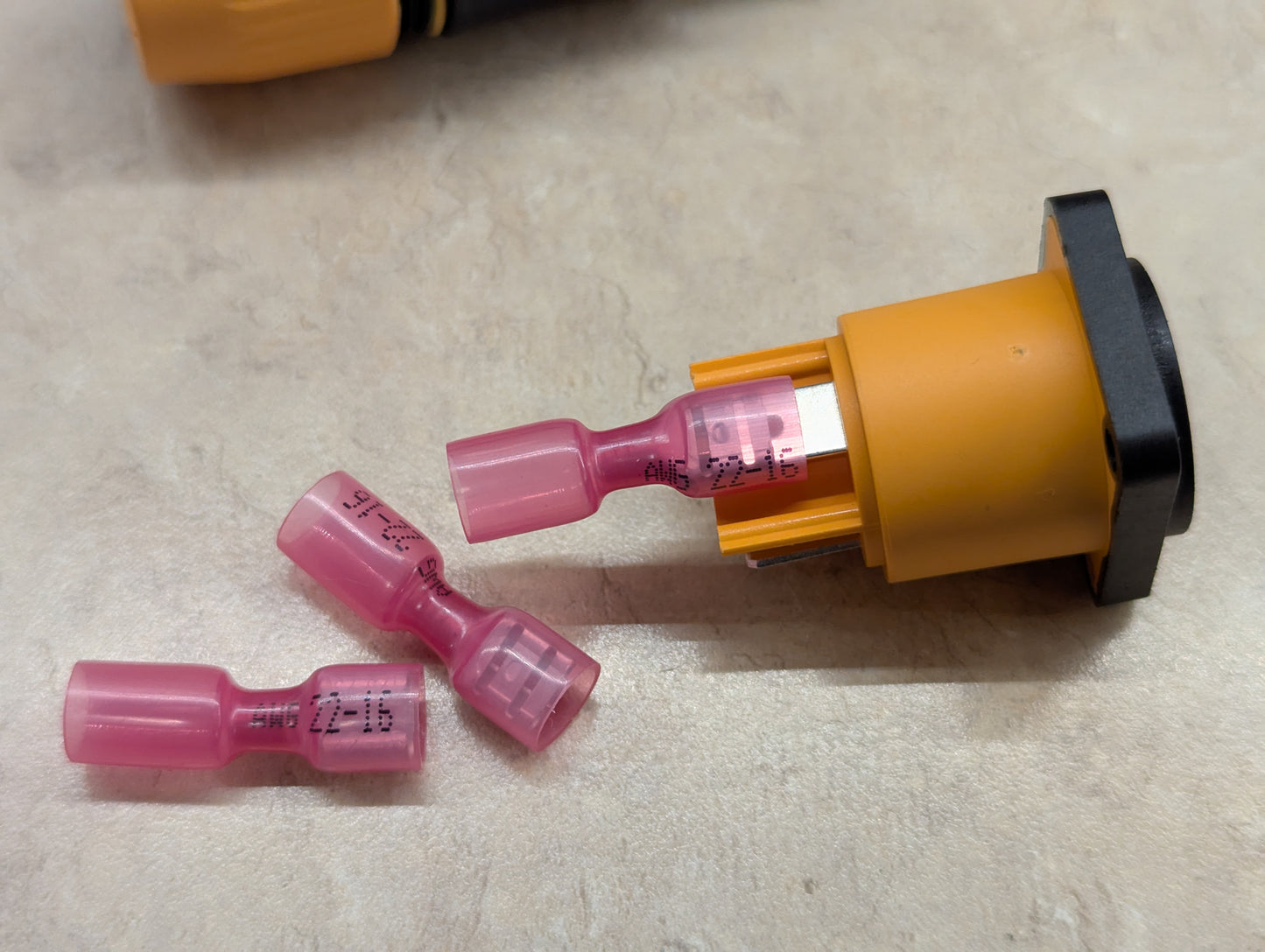

• 3 - crimp-on spade connectors with heat-shrink insulation (16-22awg wire compatibility)


If you need a right-angle power cord, check it out HERE!

Specifications:

• 20A/250V AC capable
• IP65 - Highly dust resistant, and protected from low-pressure water jets (when in the connected state)
• Dust-cover gasket for the chassis connector.
• Keyed connectors only go together one way.
• Lock engages with a twist of approximately 1/8 turn.
• Connectors include molded polarity markings for Line, Neutral, and Ground ensure proper wire connections.
• 2mm hex grub-screws on the cable connector, F2 space terminals on the chassis connector
• Similar to powercon TRUE1
